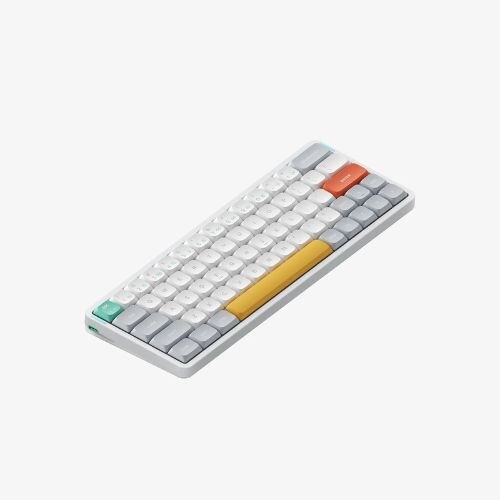

NuPhy Air60 – Full specification
Specifications
Genral Info
| Brand | Nuphy |
| Model Name | Air60 |
| Series | Air Series |
| Type | Low-profile Mechanical (Wireless + Wired) |
| Layout | 60% (Compact) |
| Release Year | 2022 |
| Use Case | Portable typing, travel, minimal workspace |
DESIGN & BUILD
| Frame Material | Aluminum top + plastic base |
| Plate Material | Aluminum |
| Keycap Material | Low-profile Dye-sublimated PBT |
| Color Options | Basalt Black, Ionic White |
| Dimensions (L × W × H) | 293 × 102 × 16 mm |
| Weight | 550 g |
| Form Factor | Compact 60% |
| Finish | Smooth matte anodization |
SWITCH & TYPING EXPERIENCE
| Switch Type | Low-profile Mechanical (Hot-swappable) |
| Switch Options | Gateron Low-profile 2.0 Red / Brown / Blue |
| Mount Type | Top frame mount with soft dampers |
| Stabilizers | Plate-mounted, pre-lubed |
| Typing Angle | Adjustable magnetic stands |
| Key Rollover | Full N-key (wired) / 6-key (Bluetooth) |
| Actuation Force | ~45 g |
| Key Travel | 1.8 mm actuation / 3.2 mm total |
| Typing Feel | Shallow yet tactile, smooth linear feel |
PERFORMANCE
| Response Time (Bluetooth) | ~8–10 ms |
| Response Time (Bluetooth) | ~8–10 ms |
| Anti-Ghosting | Full NKRO |
| Input Lag | Very low (wired) |
| Latency Mode | Low-latency gaming toggle |
RGB & LIGHTING
| Backlight Type | Per-key RGB |
| LED Orientation | South-facing |
| Lighting Effects | 20+ presets |
| Custom Effects | Via NuPhy Console / QMK / VIA |
| Brightness Levels | 5-step adjustable |
| Control | Software + Function key shortcuts |
SOFTWARE & CUSTOMIZATION
| Firmware | QMK / VIA |
| Key Remapping | Yes |
| Macro Support | Up to 3 macro layers |
| Profile Storage | 3 onboard profiles |
| Firmware Update | Yes (firmware updates via USB-C) |
| Hotkey Shortcuts | Media, RGB, layout switching |
SOUND & COMFORT
| Acoustic Dampening | Silicone layer with foam lining |
| Typing Sound Profile | Balanced, quiet low-pitch tone |
| Gasket Mount | Gasket-like flexible feel |
| Noise Reduction | Internal dampening pad |
| Wrist Rest | Optional wrist rest |
| Tilt Feet | 2-stage adjustable feet |
Support and compatibility
| Software Support | macOS, Windows, Linux, Android, iOS |
| Plug-and-Play | Yes |
| Layout Options | macOS / Windows keycaps included |
BATTERY & CONNECTIVITY
| Battery Capacity | 2500 mAh |
| Battery Type | Rechargeable lithium |
| Battery Life (No RGB) | Up to 200 hours |
| Battery Life (RGB On) | 70 hours |
| Charging Port | USB Type-C |
| Charge Time | About 2.5 hours |
| Wireless Mode | Bluetooth 5.1 |
| Wired Mode | USB-C connection |
| Multi-Device Pairing | Yes, up to 3 devices |
| Switch Between Devices | Fn + 1/2/3 |
| Polling Rate (Wired) | 1000 Hz |
| Polling Rate (Wireless) | 125 Hz |
