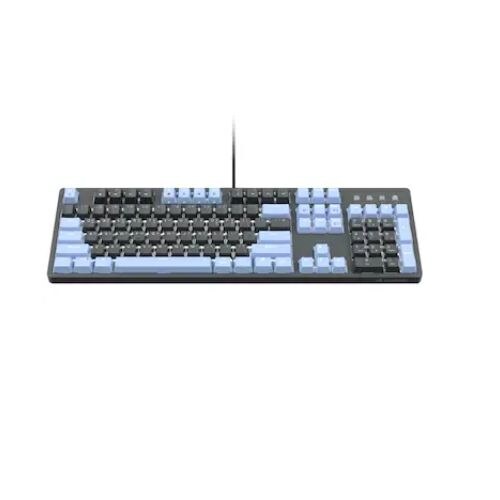

Wizmax W101P V2 – Full specification
Specifications
Genral Info
| Brand | Wizmax |
| Model Name | W101P V2 |
| Series | W-Series |
| Type | Mechanical (Wireless + Wired) |
| Layout | Full-size (104 keys) |
| Release Year | 2024 |
| Use Case | Work, Gaming, Productivity |
DESIGN & BUILD
| Frame Material | Full aluminum top and bottom housing |
| Plate Material | Steel |
| Keycap Material | PBT (Double-shot shine-through) |
| Color Options | Black, White |
| Dimensions (L × W × H) | 440 × 135 × 38 mm |
| Weight | 1150 g |
| Form Factor | Full-size with numpad |
| Finish | Brushed anodized finish |
SWITCH & TYPING EXPERIENCE
| Switch Type | Mechanical (Hot-swappable) |
| Switch Options | Outemu Red / Brown / Blue / Silent |
| Mount Type | Gasket mount with sound dampening foam |
| Stabilizers | Pre-lubed screw-in stabilizers |
| Typing Angle | Adjustable (3 levels) |
| Key Rollover | Full N-key (wired) / 6-key (Bluetooth) |
| Actuation Force | 45–50 g (depending on switch) |
| Key Travel | 2.0 mm actuation / 4.0 mm total |
| Typing Feel | Soft, responsive, low-pitched sound profile |
PERFORMANCE
| Response Time (Bluetooth) | 8–10 ms |
| Response Time (Bluetooth) | 8–10 ms |
| Anti-Ghosting | 100% (NKRO) |
| Input Lag | Negligible (Gaming Mode) |
| Latency Mode | Low-latency gaming mode toggle |
RGB & LIGHTING
| Backlight Type | Per-key RGB |
| LED Orientation | South-facing |
| Lighting Effects | 20+ preset modes |
| Custom Effects | Supported (via software) |
| Brightness Levels | 5-step adjustable |
| Control | Onboard shortcuts + software control |
SOFTWARE & CUSTOMIZATION
| Firmware | Wizmax Configurator (custom software) |
| Key Remapping | Fully programmable |
| Macro Support | Multi-layer macros |
| Profile Storage | 3 onboard profiles |
| Firmware Update | Supported via USB-C |
| Hotkey Shortcuts | RGB control, function lock, media controls |
SOUND & COMFORT
| Acoustic Dampening | Multi-layer foam and silicone padding |
| Typing Sound Profile | Deep, quiet thock sound |
| Gasket Mount | Gasket mount improves comfort and reduces vibration |
| Noise Reduction | Enhanced with stabilizer foam |
| Wrist Rest | Included detachable magnetic wrist rest |
| Tilt Feet | Dual-level adjustable |
Support and compatibility
| Software Support | Windows, macOS, Linux, Android, iOS |
| Plug-and-Play | Yes (no driver required) |
| Layout Options | Windows/macOS keycap support |
BATTERY & CONNECTIVITY
| Battery Capacity | 4000 mAh |
| Battery Type | Rechargeable lithium-ion |
| Battery Life (No RGB) | Up to 220 hours |
| Battery Life (RGB On) | 80–90 hours |
| Charging Port | USB Type-C |
| Charge Time | Approx. 3 hours |
| Wireless Mode | Bluetooth 5.1 |
| Wired Mode | USB-C cable connection |
| Multi-Device Pairing | Yes, up to 3 devices |
| Switch Between Devices | Fn + 1/2/3 shortcuts |
| Polling Rate (Wired) | 1000 Hz |
| Polling Rate (Wireless) | 125 Hz |
