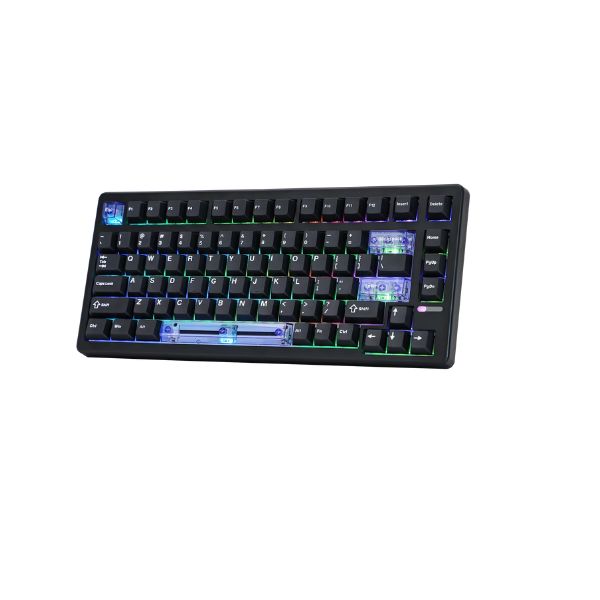

Epomaker HE80+ – Full specification
Specifications
Genral Info
| Brand | Epomaker |
| Model Name | HE80+ |
| Series | HE Series |
| Type | Mechanical (Wired) |
| Layout | 75% Compact (82 Keys) |
| Release Year | 2025 |
| Use Case | Gaming, Productivity, Work |
DESIGN & BUILD
| Frame Material | ABS Plastic |
| Plate Material | FR4 Plate |
| Keycap Material | PBT Double-shot + Extra PC Transparent Keycaps |
| Color Options | Black |
| Dimensions (L × W × H) | 332 × 146 × 42 mm |
| Weight | 830 g |
| Form Factor | Compact 75% Layout |
| Finish | Matte texture |
SWITCH & TYPING EXPERIENCE
| Switch Type | Magnetic Hall Effect (MagneX Switch) |
| Switch Options | EPOMAKER MagneX Switch 30gf Initial Force, 37 ±5 gf Min Trigger Force, 45 gf Bottom-out Force |
| Mount Type | Gasket Mount |
| Stabilizers | Plate-mounted pre-lubed stabilizers |
| Typing Angle | Adjustable: 6, 8.5, and 11.5 degrees |
| Key Rollover | Full N-key Rollover (NKRO) |
| Actuation Force | 30 gf initial, adjustable |
| Key Travel | Total travel 3.4 ± 0.1 mm |
| Typing Feel | Smooth, quiet, with cushioned gasket mount and multiple sound dampening layers |
PERFORMANCE
| Anti-Ghosting | Yes, full NKRO |
| Input Lag | Ultra low |
| Latency Mode | Ultra-low latency gaming mode |
RGB & LIGHTING
| Backlight Type | Per-key programmable RGB |
| LED Orientation | South-facing |
| Lighting Effects | Dozens of preset effects and customizable patterns |
| Custom Effects | Supported with software |
| Brightness Levels | Adjustable |
| Control | Software control and onboard shortcuts |
SOFTWARE & CUSTOMIZATION
| Firmware | Proprietary with advanced features like Dynamic Keystroke (DKS), Snap Key (SOCD) |
| Key Remapping | Fully programmable via software |
| Macro Support | Multi-layer macros and key functions |
| Profile Storage | Supported via software |
| Firmware Update | Supported via USB |
| Hotkey Shortcuts | RGB control, multimedia keys |
SOUND & COMFORT
| Acoustic Dampening | 4 layers of padding including latex sandwich foam, IXPE switch pad, silicone and foam bottom layers |
| Typing Sound Profile | Quiet with deep "thock" sound |
| Gasket Mount | Yes, provides cushioned typing feel |
| Noise Reduction | Enhanced with stabilizer pads and internal dampening layers |
| Wrist Rest | Optional (sold separately) |
| Tilt Feet | Dual-level adjustable |
Support and compatibility
| Software Support | Windows, macOS, Android, Linux, PS4, PS5, Switch |
| Supported OS | Full compatibility across major systems |
| Plug-and-Play | Yes (no driver needed) |
| Layout Options | Standard US QWERTY |
BATTERY & CONNECTIVITY
| Battery Capacity | None (wired only) |
| Battery Type | N/A |
| Battery Life (No RGB) | N/A |
| Battery Life (RGB On) | N/A |
| Charging Port | N/A |
| Charge Time | N/A |
| Wireless Mode | N/A |
| Wired Mode | USB A to USB C cable connection |
| Multi-Device Pairing | N/A |
| Switch Between Devices | N/A |
| Polling Rate (Wired) | 8000 Hz (wired) |
